Trigger Pump Bottle Capping Machine

    Buy cheap Trigger Pump Bottle Capping Machine from wholesalers

    Buy cheap Trigger Pump Bottle Capping Machine from wholesalers
    • Buy cheap Trigger Pump Bottle Capping Machine from wholesalers
    • Buy cheap Trigger Pump Bottle Capping Machine from wholesalers
    • Buy cheap Trigger Pump Bottle Capping Machine from wholesalers
    • Buy cheap Trigger Pump Bottle Capping Machine from wholesalers
    • Buy cheap Trigger Pump Bottle Capping Machine from wholesalers

    Trigger Pump Bottle Capping Machine

    Ask Lasest Price
    Brand Name : NPACK
    Certification : CE
    Price : $8,000.00
    • Product Details
    • Company Profile

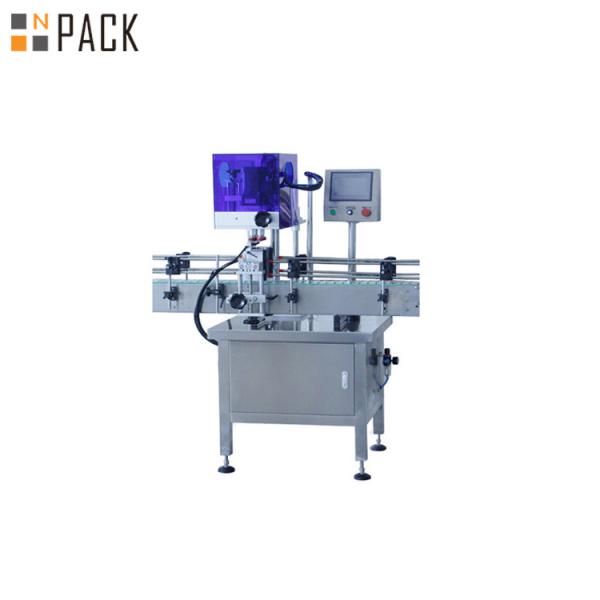

    Trigger Pump Bottle Capping Machine

    Automatic 4 Wheels Trigger Pump Capper Capping Machine

    Automatic Csrew Capper Bottle Capping Machine

    Product Description

    Automatic Screw capping machine 4 wheels

    The machine is control by touch screen, parameter can be set on touch screen very easily. It is very flexible for different sizes of round bottles, square bottles and flat bottles by adjustment. The main structure is made of durable 304 stainless steel. Capping time can be set to fit different caps and different levels of tightness.


    Main Feathures:
    1. Controlled by DALTA touch screen.
    2. Adjustable for different sizes and shapes of caps and bottles
    3. Bottle Clamp belt bottle in system is optional for upgrade capping speed, up to 40BPM
    4. Integrated digital control with Schneider PLC and high tech touch screen controls for easy operation.
    5. GMP standard stainless steel.

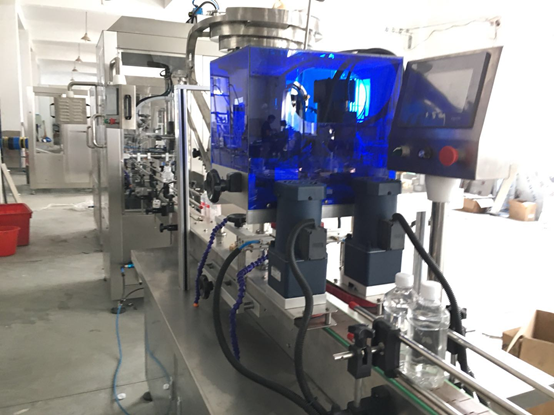

    Trigger Pump Bottle Capping Machine

    Trigger Pump Bottle Capping Machine


    Main Component List


    4 Wheel Capping Machine

    No.

    Descriptions

    BRAND

    Remark

    1

    Capping Motor

    JSCC

    Germany Technology

    2

    Reducer

    JSCC

    Germany Technology

    3

    Touch Screen

    DALTA

    TAIWAN

    4

    PLC

    DALTA

    TAIWAN

    5

    Pneumatic Cylinder

    AIRTAC

    TAIWAN

    6

    Air Filter

    AIRTAC

    TAIWAN

    7

    Press Controller

    AIRTAC

    TAIWAN

    8

    Main Structure


    304SS

    Technical Parameter:


    Capping Head

    :

    1 Heads

    Production Capacity

    :

    12-30BPM depending on bottle sizes and shapes

    Bottle Height

    :

    Up to 460MM

    Cap Diameter

    :

    Up to 70MM

    Voltage/Power

    :

    220VAC 50/60Hz 450W

    Driven way

    :

    Motor with 4 wheels

    Interface

    :

    DALTA Touch Screen

    Spare Parts

    :

    Capping Wheels


    Company Information

    SHANGHAI NPACK AUTOMATION EQUIPMENT CO., LTD,

    Trigger Pump Bottle Capping Machine



    Installation and Debugging
    -- We will send engineers to carry out installation and debugging of the equipment in buyer's place if requested.
    -- The cost for International double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers.
    -- The normal debugging term is 3-7days, and the buyer should pay US$80/day per engineer.
    -- If customer do not require above, then customer need to be train in our factory. Before installation, the customer need read the operation manual firstly. Meanwhile, we will offer an operation video to customer.

    Training
    -- We offer machines training system; the customer can choose training in our factory or in customer workshop. The normal training days are 1-2 days.

    Warranty
    -- The sold machine will be guarantee in one year.
    -- In the guarantee year, any spare parts broken due to supplier's quality issue the spare parts will be supplied free for customer, customer need to pay the freight cost if the parcel weight more than 500gram.
    -- The easy wearing out spare parts are not in the warranty terms, such as O rings, belts which will be supplied with the machine for one year using.
