Touch Screen Honey Jar Filling Machine 800-4000 Bph Jar Filling Equipment

    Buy cheap Touch Screen Honey Jar Filling Machine 800-4000 Bph Jar Filling Equipment from wholesalers

    Buy cheap Touch Screen Honey Jar Filling Machine 800-4000 Bph Jar Filling Equipment from wholesalers
    • Buy cheap Touch Screen Honey Jar Filling Machine 800-4000 Bph Jar Filling Equipment from wholesalers

    Touch Screen Honey Jar Filling Machine 800-4000 Bph Jar Filling Equipment

    Ask Lasest Price
    Brand Name : NPACK
    Certification : CE ISO
    Supply Ability : 10 Set/Sets per Month
    Price : $12,500.00
    Model Number : NP-VF
    • Product Details
    • Company Profile

    Touch Screen Honey Jar Filling Machine 800-4000 Bph Jar Filling Equipment

    Automatic Piston Honey Filling Packing Machine Manufacturer

    Automatic honey filling machine

    Touch Screen Honey Jar Filling Machine 800-4000 Bph Jar Filling Equipment

    NP-VF automatic honey filling machine is specially design for filling viscous honey into glass jars and pet bottles, it is also namely honey filler, honey jar packing machine. It is an ideal choice for honey bee factory.


    ► Different types of NPACK automatic honey filling machine

    There are many models and types of honey filling machine base on different capacity, the filling nozzles number are from one head to 16 heads, and the filling volume is from 5g to 20g, and 100g to 1000g and even 1000g to 5KG.


    ► Main structure of honey filler

    -20L to 200L Top hopper for option, double Jacket hopper with heating and mixing system for option,

    -Main body of machine made by 304SS

    -Filling nozzzles, filling nozzles are specially design for shut off and silk cut for honey

    -Filling nozzles moving up and down by air cylinder, and servo motor moving up and down for option

    -PLC control system, and HMI operation

    -Specially made horse and valve for honey, with CIP system connect horse.


    ► Competitive Advantage of automatic honey filler

    There are many advantages of the automatic honey filling machine

    -PLC control, operation on touch screen.

    -Panasonic servo motor driven , automatic adjust the Filling size on HMI, eg. Users want To fill 500g honey,

    users just input the number 500, then the machine will automatic adjust

    -it is volumetric by piston, high filling accuracy

    -With top Double jacketed heating and mixing tanks which will prevent the honey crystallization after stop working one day or more days. Also piston and hose can be heating.

    -The automatic honey filling machine also can has the function by CIP system which will connect the users CIP system

    -The horse of the honey filler are specially made according to the honey nature, no dead corner, food grade

    -The soft tubes or pipes on the honey filler are adapt world brand Toyox from japan

    -Specially made rotary valve for viscous honey transfer


    ► Main technical

    Filling Nozzles

    :

    1-16Nozzles

    Production Capacity

    :

    800 -5000Bottles Per Hour

    Filling Volume

    :

    100-500ml,100ml tp 1000ml

    Power

    :

    2000W, 220VAC

    Accuracy

    :

    ±0.1%

    Driven

    :

    Panasonic Servo Motor

    Inerface

    :

    Schneider Touch Screen


    ► Automatic honey Filling Machine Main features

    a) Products to Fill:
    1) hot fill ( 35 ~ 40℃) , cold filling normal temperature
    2) Specific Gravity: 1.1 ~1.4 gr/cm3
    3) Spreading Chocolate past • Honey • Spreading Cheese paste, Molasses.


    b) Bottle type:
    1) PET bottle • Quadrant Cross section •
    2) Glass Jars & PE, PET Jars • Cylindrical Cross section • Volume

    c) Filling tolerances: +/- max 0.5%
    honey Filling Machine basic composition
    1.1 Bottles & Jars cleaning by air.
    1.2 Automatic bottles feeding and holders (for plastic bottles if need)
    1.3 No dripping.
    1.4 Output 20 ~ 100 bpm.
    1.5 No bottle No fill
    1.6 Control panel with PLC touch screen. Malty filling programs saving.


    d) Double jacketed Hopper with:
    -180 liters volume, • Level Detector. • Electric heaters.
    -Product’s temperature detector and control • Stirrer
    -Easy dissembling the filling system and nozzles for cleaning.
    -Machine’s body of SS 304, all parts in contact with product is SSL 316.

    <<Welcome to send inquiry>>

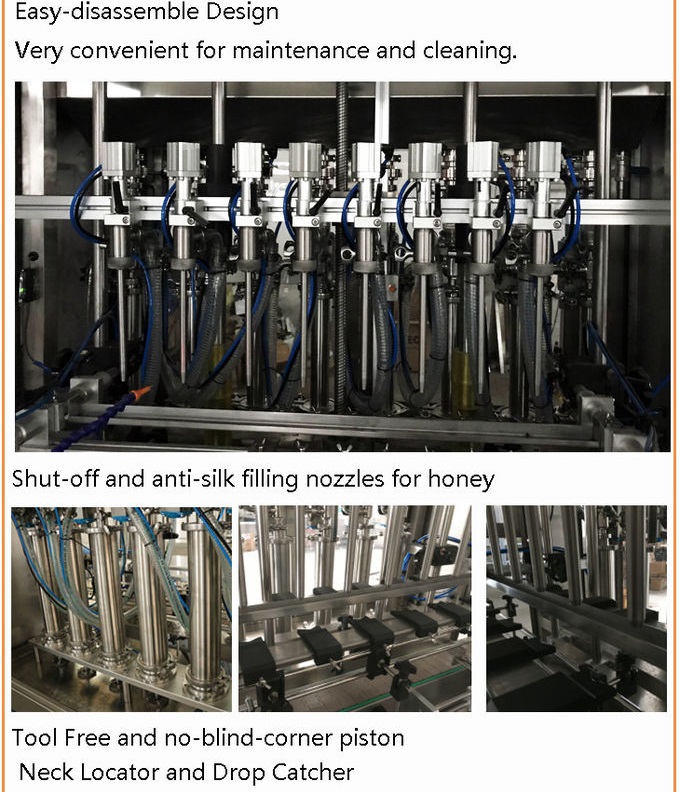

    ► Detailed images

    ► Components List

    Touch Screen Honey Jar Filling Machine 800-4000 Bph Jar Filling Equipment


    Our Machine VS Other Suppliers


    ItemOur machineOther suppliers
    Top TankDouble-jacket electrict heating tankNO
    PistonWith hot water cycling heating sytemNO
    Connect tube and hoseWith hot water sycling heating systemNO
    Filling nozzlesShut off and anti-silk filling nozzlesNO
    CIP sytemOur machine can connect CIP systemNO
