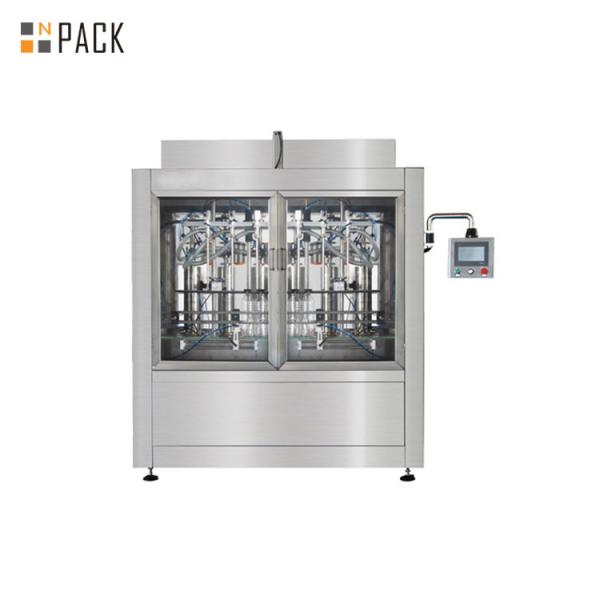

    Automatic Honey Jar Filling Machine

    Hot Sale Automatic Machine For Filling Honey

    ► Automatic honey filling machine

    NP-VF automatic honey filling machine is specially design for filling viscous honey into glass jars and pet bottles, it is also namely honey filler, honey jar packing machine. It is an ideal choice for honey bee factory.


    ♦Servo Drive System

    The NP-VF series volumetric filling system utilizes the delicate servo drive system to control the main filling structure, achieving high stability and precise positioning. With the vertical movement of the filling piston provides long term energy saving and also effectively reduces machine load rate.


    ♦Tool-Free Adjustment

    Adjustments can be made through the PLC, completely tools-free, giving users a fast and efficient result. The delicate servo control system design provides options for surface layer liquid filling, bottom layer liquid filling, and bottle neck (opening) filling accordingly with different types of liquids.


    ♦High Accuracy

    The delicate servo system controls the filling amount through precise piston strokes, providing high filling accuracy. The piston is intelligently designed with an adjusting mechanism to enable users to obtain ultimate higher accuracy.


    ♦High Adaptability

    The Automatic Servo Filling Machine can be used in food, pharmaceuticals, chemicals, cosmetics, and other industries.


    ► Main technical

    Filling Nozzles

    :

    1-16Nozzles

    Production Capacity

    :

    800 -5000Bottles Per Hour

    Filling Volume

    :

    100-500ml,100ml tp 1000ml

    Power

    :

    2000W, 220VAC

    Accuracy

    :

    ±0.1%

    Driven

    :

    Panasonic Servo Motor

    Inerface

    :

    Schneider Touch Screen


    ► Automatic honey Filling Machine Main features

    • Controlled by Schneider servo system.
    • Adjustable filling speed
    • Accurate to ±0.5% (with drinking water)
    • Integrated digital control with Schneider PLC and high-tech touch screen controls for easy operation.
    • Designed for easy changeover and cleaning.
    • Professional manufacturing techniques using the ISO-9001 system.
    • GMP standard stainless steel.
    • Bottom-up filling for option.
    • Bottle neck location.
    • No bottle-no fill system.
    • Filling zone protected by stainless steel frame
    • Volume is easily adjusted through touch screen. Filling pistons are controlled by servo system.
    • Individual piston adjustment.
    • Digital control system to enable multiple filling actions on the same bottle for double, triple and more.
    • Nozzles can set to be above bottle mouth or bottom up, synchronizing with liquid level (beneath or above) to eliminate bubbling of foamy liquids
    • Three-step-filling, it can fill slowly at the beginning and then accelerate to faster speed, finally slow down once again to finish up. This can prevent foamy liquids from bubbling and avoid spillage.

    <<Welcome to send inquiry>>

    ► Detailed images


    Components List

    No.DescriptionsBRANDITEMRemark
    1Servo MotorPanasonic1.5KWJapan
    2ReducerFenghuaATF1205-15Taiwan
    3Conveyor MotorZhenYuYZ2-8024China
    4Servo DriversPanasonicLXM 23DU15M3XJapan
    5PLCSchneiderTM218LDALCODR4PHNFrance
    6Touch ScreenSchneiderHMZGXU3500France
    7Frequency ConverterSchneiderATV12H075M2France
    8Photo electricity of Inspect bottleOptexBRF-NJapan
    9Pneumatic ElementAirtacTaiwan
    10Rotary ValveF07/F05No Need for Oil
    11Pneumatic actuatorF07/F05No Need for Oil
    12Low-Voltage ApparatusSchneiderFRANCE
    13Proximity SwitchROKOSC1204-NTaiwan
    14BearingChina
    15Lead ScrewTBITaiwan
    16Butterfly ValveCHZNAChina

    Our Machine VS Other Suppliers


    ItemOur machineOther suppliers
    Top TankDouble-jacket electrict heating tankNO
    PistonWith hot water cycling heating sytemNO
    Connect tube and hoseWith hot water sycling heating systemNO
    Filling nozzlesShut off and anti-silk filling nozzlesNO
    CIP sytemOur machine can connect CIP systemNO
