Toothpaste Aluminum Tube Filling Machine Small Plastic Tube Sealing Machine

Ask Lasest Price
Brand Name :	Npack
Certification :	ISO9001 GMP
Supply Ability :	20 Set/Sets per Month
Price :	$10,000.00 - $14,000.00 / Sets
Model Number :	NP.F-50
Payment Terms :	L/C, T/T
Delivery Time :	25 working days

Add to Cart

Product Details
Company Profile

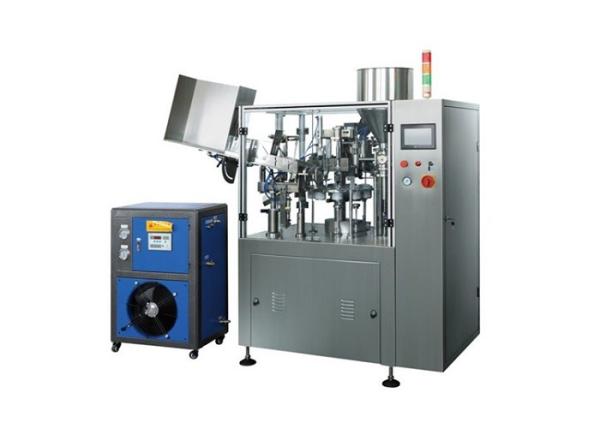

Toothpaste Aluminum Tube Filling Machine Small Plastic Tube Sealing Machine

Product description

Small Toothpaste Aluminum Tube Filling Sealing Machine

It suits for filling, sealing and date printing the products adopting tube packing of daily chemistry, pharmacy, food and chemistry etc. industry, etc.
Features:The machine was characterized by mechanism structure, stable operation, high speed, high efficiency, low noise, simple structure, convenient operation and maintenance and less fault.
B.GF-50:automatically insert the tube and position, PLC control system, heat the inner tube with hot air, accurate position. Can adjust and show on touch screen the filling volume automatically, it is an ideal machine for sealing plastic tube for it is attractive appearance and reliability.

Key Features
◆Compact Design
◆Driving Parts Fully-closed
◆Pneumatic Tube Washing & Feeding
◆Intelligent Temperature Control and Cooling System
◆Easy to Operate and Adjust
◆316L Stainless Steel Contact Parts to meet GMP Standard
◆Safety Interlock Shutdown when Door is Open
◆Overload Protection Provided
◆Automated Working process from Tube Loading to Finished Products Output
◆Automatic Orientation Effected by Photoelectric Induction

Technical Parameters
Filling volume: 50-300ml/unit (Adjustable)
Filling accuracy: ≦±1﹪
Capacity: 2400-3000unit/hour, Adjustable
Tube diameter: Φ10-50 mm
Tube length: 50-200mm
Hopper volume: 40L
Power: 380V/220V (Optional)
Air pressure: 0.4-0.6 MPa
Equipped motor: 1.1KW
Machine power: 5kw
Inner wind motor: 0.37kw
Convulsions motor: 0.37kw
Dimension: 1950×760×1850(mm)
Weight: About 750 Kg
Optional Devices
◆ Chiller
◆ Date Coding Embossing
◆ Automatic Tube Feeding Magazine
◆ Change Parts

Company Introduction

NPACK with more than 10 years experiences in this industry and large technical in our factory.There are 12 senior engineers.And,we have export our machine to more than 60 countries,such as Vietnam,Thailand, Malaysia, American,Indonesia, Nigeria,Egypt,and so on. There are more than 1,000 foreign customers.
it is a professional manufacturer and supplier of various types of liquid, powder, paste, granular packing machines since 2008.And in 2012, NPACK stepped into a new stage, and supply one stop packaging solution. And turn key projects for customers, now NPACK is one of the top brand in packaging machineries, and get a good Reputation in the fields of Chemicals &cosmetics, Pharmaceuticals and Food industry. In 2014, NPACK invested a new Plant for printing self adhesive labels( stickers labels in rolls) SHANGHAI RENYI PRINTING TECHNOLOGY CO.,LTD

Our advantages:

1. more than 10 years experiences in this industry and large technical in our factory.
2. have export our machine to more than 60 countries.
3. There are more than 1,000 foreign customers.
4. There are 12 senior engineers in our factory.
5. The material of our machine is 100% 314/316 stainless steel.

Payment & Delivery

Payment Term	T/T ,L/C,West Union,Paypal
Delivery Time	within 30 days on receipt of your deposit
Warranty	one year
Installation Commission	The buyer should bear all cost of visa, traffic, hotel and food

Training:

1. We offer machines training system, the customer can choose training in our factory or in customer workshop. The normal training days are 3-5 days.
2. We offer operation manual to customer.
3. We offer training video and machine operation video to customer.
4. We offer remote control service, if customer do not know how to operate and use the machine.

Installation:

We will dispatch engineers to carry out installation and debugging of the equipment in buyer's place if requested. The cost for International double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work.

Warranty:

The Manufacturer shall guarantee the goods are made of Manufacturer's best materials. The sold machine will be guarantee in one year, in the guarantee year, any spare parts broken due to supplier's quality issue, the spare parts will be supplied free for customer, customer need to pay the freight cost if the parcel weight more than 500gram.

FAQ

Q: Are you factory or trading company?
A: We are factory focus on designing, manufacturing, assembling, installing and debugging various types of filling machines, capping machines and labeling machines since 2008.
Q: Can you send a video showing how your machine works ?
A: Certainly, we have made all our machine's video.
Q: Do you make test before shipment?
A: We always test machine fully and make sure it works smoothly before shipment.
Q: What is the term of payment and trade terms?
A: We accept T/T, Western Union, MoneyGram, Alibaba Trade Assurance payments.
Trade Term : EXW,FOB,CIF,CNF.
Q: What's the MOQ and warranty?
A: There is no MOQ , welcome to order, we promise 24 month warranty .
Q: What kind of package for shipping?
A: Use the basic stretch film wrap around the whole machine,and packed with exported wooden case , also can be according to your requirements.
