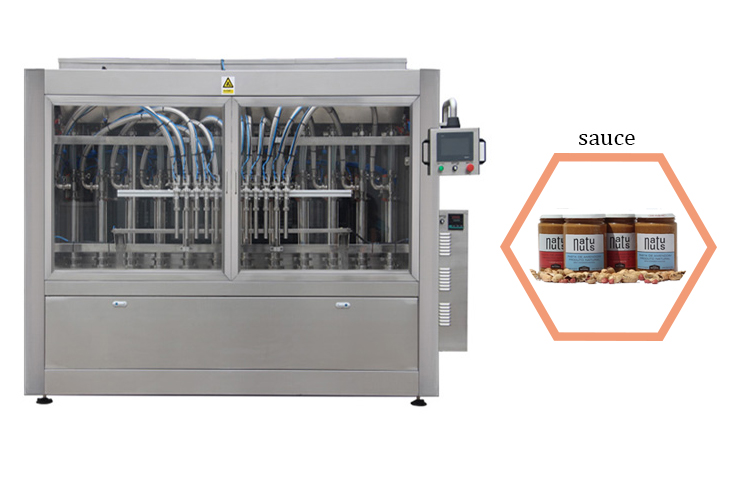

Automatic Ketchup Sauce Filling Machine Peanut Sauce Equipment
Features:
NP-VF This series filling machine is suitable for filling viscosity
liquid, such as cream,lotion, shampoo, sauce,honey,ketchup, and
other viscous liquid. Automatic controlled by computer (PLC), touch
screen control panels. Totally enclose form, submergence filling,
high measurement accuracy. Compact and perfect feature, liquid
cylinder and conduits easy dismount and clean. it also may suited
various figure Containers.
Configuration and performance, features:
1.Adopt German original SIEMENS (Siemens) PLC control(or Mitsubishi
PLC) to ensure
the performance stability of the system.
2. Select imported electricity, pneumatic control components, with
stable performance.
3. Photoelectric detection system adopts German products, with
reliable quality.
4. The leading anti-leakage devices ensure that no leakage occurs
in the course of production.
5. According to users’ demand, automatic covering machine,
automatic continuous capping machine, spinning and covering
dual-use machine, leak detection machine, aluminum foil sealing
machine, ink-jet printing machine, automatic unpacking machine,
packing machine and pack - sealing machine can be affiliated to be
used to form pipeline operations.
Main performance Parameter:
1. Name: ketchup Filling Machine
2. Model:NP-V F
3. Applied bottle range:100ml-1000ml,1000ml-5000ml
4. Material density:0.6-1.5
5. Tolerance of filling quantity ±£1%
6. Filling speed: 25b/min for 1L
7. Power Source: 220V,50HZ
8. Air pressure:0.6Map
9. Air Consumption:200L/min
10. Power output:2KW
Main technical
| Filling Nozzles | : | 1-16Nozzles |
| Production Capacity | : | 800 -5000Bottles Per Hour |
| Filling Volume | : | 100-500ml,100ml tp 1000ml |
| Power | : | 2000W, 220VAC |
| Accuracy | : | ±0.1% |
| Driven | : | Panasonic Servo Motor |
| Inerface | : | Schneider Touch Screen |
Automatic Sauce Filling Machine Main features
a) Products to Fill:
1) hot fill ( 35 ~ 40℃) , cold filling normal temperature
2) Specific Gravity: 1.1 ~1.4 gr/cm3
3) Spreading Chocolate past • Honey • Spreading Cheese paste,
Molasses.
b) Bottle type:
1) PET bottle • Quadrant Cross section • Volume 250 ml. • neck 32
mm.
2) Glass Jars & PE, PET Jars • Cylindrical Cross section • Volume
200 ~ 350 ml.
• neck 45 mm.
c) Filling tolerances: +/- max 0.5%
Filling Machine basic composition
1.1 Bottles & Jars cleaning by air.
1.2 Automatic bottles feeding and holders (for plastic bottles if
need)
1.3 No dripping.
1.4 Output 20 ~ 100 bpm.
1.5 No bottle No fill
1.3 Control panel with PLC touch screen. Malty filling programs
saving.
1.4 Double jacketed Hopper with:
• 180 liters volume, • Level Detector. • Electric heaters.
• Product’s temperature detector and control • Stirrer
1.5 Easy dissembling the filling system and nozzles for cleaning.
1.6 Machine’s body of SS 304, all parts in contact with product is
SSL 316.
Company Information
SHANGHAI NPACK AUTOMATION EQUIPMENT CO., LTD,
1. We are Manufacturing and Sale high quality packaging
machineries.
2. Supply and design one stop packaging solution for
pharmaceuticals, daily chemicals, cosmetics and food industry
3. Excellent after sales service system and machine guarantee
system, all of the machines was guarantee For one year, and in one
year, all of the broken spare parts are free if cause by the qualit
Training
1.We offer machines training system, the customer can choose
training in our factory or in customer workshop.The normal trainig
days are 3-5 days;
2. We offer operation manual to customer
3. We take a traning video, and machine operation video to customer
4.we offer remote control service, if customer do not know how to
operate and use the machine, we will offer this service
FAQ
How about Training,Installation and Debugging?
We offer machines training system, the customer can choose training
in our factory or in customer workshop.The normal trainig days are
1-2 days.
If machine is out of waranty year, What can we do if any parts
broken?
We offer machine all life service, if any spare parts were broken
after one year , the customers can buy the spare parts in local
market or buy from suppliers, we can send spare parts to customers
in 24 hours. And all of our machine components parts are original
from world famouse brand, it is easy to find in the local.
What is your warranty?
The sold machine will be guarantee in one year, in the guarantee
year, any spare parts broken due to supplier’s quality issue the
spare parts will be supplied free for customer, customer need to
pay the freight cost if the parcel weight more than 500gram.The
easy wearing out spare parts are not in the warranty terms.
