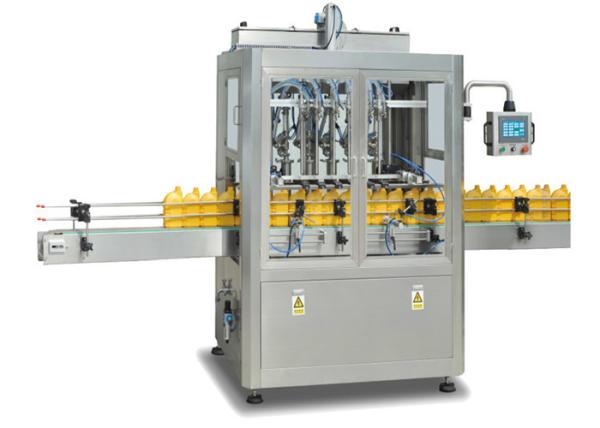

Automatic engine oil filling machine 0.5L to 5L servo motor driven

The whole lube oil , car oil , engine oil filling lines, includes automatic bottle air washing machine which to clean the empty bottles before filling, automatic piston filling machine, capping machine, induction sealing machine and automatic double sides labeling machine and so on. We dedicated to offer customer one-stop solution.

The automatic filling machine is designed with high filling accuracy, high speed.

► Features

Servo Drive System

The NP-VF series volumetric filling system utilizes the delicate servo drive system to control the main filling structure, achieving high stability and precise positioning. With the vertical movement of the filling piston provides long term energy saving and also effectively reduces machine load rate.

Tool-Free Adjustment

Adjustments can be made through the PLC, completely tools-free, giving users a fast and efficient result. The delicate servo control system design provides options for surface layer liquid filling, bottom layer liquid filling, and bottle neck (opening) filling accordingly with different types of liquids.

High Accuracy

The delicate servo system controls the filling amount through precise piston strokes, providing high filling accuracy. The piston is intelligently designed with an adjusting mechanism to enable users to obtain ultimate higher accuracy.

High Adaptability

The Automatic Servo Filling Machine can be used in food, pharmaceuticals, chemicals, cosmetics, and other industries.

Other Features

• Controlled by Schneider servo system.
• Touch Screen operation.( the language can be customized)
• Adjustable filling speed
• Accurate to ±0.1% ( with drinking water )
• Integrated digital control with Schneider PLC and high tech touch screen controls for easy operation.
• Designed for easy changeover and cleaning.
• Professional manufacturing techniques using the ISO-9001 system.
• GMP standard stainless steel.
• Bottom-up filling for option.
• Bottle neck location.
• No bottle-no fill system.
• Filling zone protected by stainless steel frame
• Volume is easily adjusted through touch screen. Filling pistons are controlled by servo system.
• Individual piston adjustment.
• Digital control system to enable multiple filling actions on the same bottle for double, triple and more.
• Nozzles can set to be above bottle mouth or bottom up, synchronizing with liquid level (beneath or above) to eliminate bubbling of foamy liquids.
• Three-step-filling, it can fill slowly at the beginning and then accelerate to faster speed, finally slow down once again to finish up. This can prevent foamy liquids from bubbling and avoid spillage.

► Advantages of servo system.

• Volume Setting by touch screen, digital display
• Further Accuracy Adjustment by touch screen
• TBI screw lead adapted, higher accuracy
• 3-step filling, low speed for bottom layer and mouth layer, high speed for middle layer, this can prevent foamy liquids from bubbling and avoid spillage and get more filling efficiency.

► Parameters

► Certificate

Shanghai NPACK Automation Equipment Co., Ltd. is a professional manufacturer of various types of liquid, powder, paste, granular packing machines. Our main products: NP-VF series of filling machines, piston filling machines, overflow filling machines, gravity filling machines, weighing filling machines; NP-C series of rotary capping machines, inline capping machines; NP series of powder, liquid, granular automatic packaging machines; and washing machines, ovens, unscramblers, aluminum foil sealing machines, inkjet printers, labeling machines, rotary tables, conveyor belts and other auxiliary equipment. Our machines are widely applied to daily-chemical, cosmetics, pesticides, oil, food, beverage, pharmaceutical and other industries. We always adhere to the principles of "technological innovation" and "excellent quality." We focus on product R&D while ensuring technology leadership and innovative features. All products are made of components and materials which are purchased from Germany, the United States, Japan, and South Korea, for the processing and assembling of our engineers and workers. They are the crystallization of our wisdom and labor. We use ISO9001:2008 quality management system and 5S on-site management practices to ensure the compelling product quality and accurate and timely supply. Our professional after-sale service team is ready to provide fast and efficient help for customers at any time. After years of development, we have accumulated rich experience in fluid packaging. Whether agent or cream, high-foam or corrosive products, we will provide you with the most reasonable solution in the first time. Excellent service and good reputation make us to be the leading supplier in this industry. Products have been exported to more than 50 countries and regions, including America, Europe, the Middle East, and Southeast Asia, being well received by our customers. We will confirm to you by excellent quality and efficient after-sale service. Zhiquan IS YOUR BEST CHOICE.
